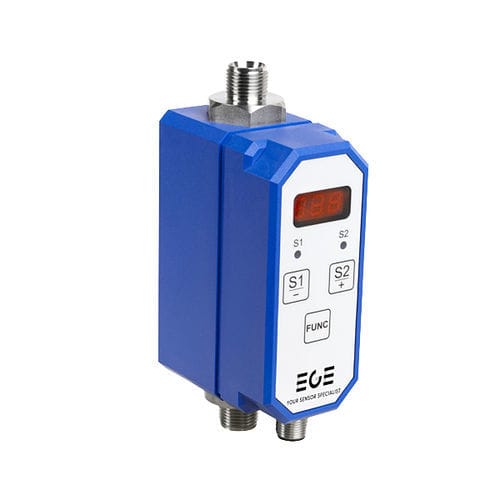

Thermal mass flow meter SDN 550 series
for waterin-linecompact

thermal mass flow meter
thermal mass flow meter
thermal mass flow meter
thermal mass flow meter
Add to favorites
Compare this product


Characteristics

Technology
thermal mass
Fluid
for water
Installation
in-line
Other characteristics
compact, programmable, with temperature sensor
Volumetric flow rate

Max.: 40 l/min
(10.5669 us gal/min)

Min.: 1 l/min
(0.2642 us gal/min)

Process temperature

Max.: 60 °C
(140 °F)

Min.: 0 °C
(32 °F)

Process pressure

20 bar
(290.08 psi)

Description

Inline-Compact • Digital display Series SDN - Flow controller Flow- and temperature monitoring of water and water-glycol mixtures Programmable Analog / temperature output 2x PNP output flow 2x PNP output temperature EGE offers thermodynamic flow controllers without moveable parts, which means they are robust and resistant to soiling. Controllers for fluids such as water, glycol mixtures or chemicals are as much part of the product range as sensors for gases such as air and carbon dioxide. Intrinsically safe sensors based on ATEX for explosive and hazardous areas are also available. Additional variations consist of high temperature sensors up to 160 °C, special sensors made from such materials as Hastelloy, Monel, titanium and tantalum with high resistance to chemicals, and programmable flow sensors with digital displays. The flow controllers are either screwed into the side of the pipe or added to the line itself in the form of inline sensors. Function » Probes » Amplifiers and compact devices » Terminology » Setting instructions » Inline-Flow monitoring » Use in hazardous areas » Air flow controller compact inline Fluid controllers The thermal flow controllers by EGE can be used wherever flows have to be monitored. The standard one-piece sensors are made from the very durable V4a stainless steel (DIN 1.4571). For especially aggressive fluids, EGE manufactures sensors made from special materials such as bronze, Hastelloy, titanium or even PTFE. EGE flow controllers are reliable units for the automation industry, chemical industry, and wherever flows have to be monitored in a safe, robust and low-maintenance manner.
