UV camera SCA2020-UV-TRindustrialHDRimage processing
Add to favorites
Compare this product
Characteristics
- Applications
- industrial
- Technology
- HDR
- Function
- image processing
- Spectrum
- UV
- Sensor
- sCMOS
- Interface
- USB 3.0
- Resolution level
- HD, 2048 x 2048
- Resolution
- 4,2 mpx
- Other characteristics
- high-sensitivity, with rolling shutter, low-noise
Description

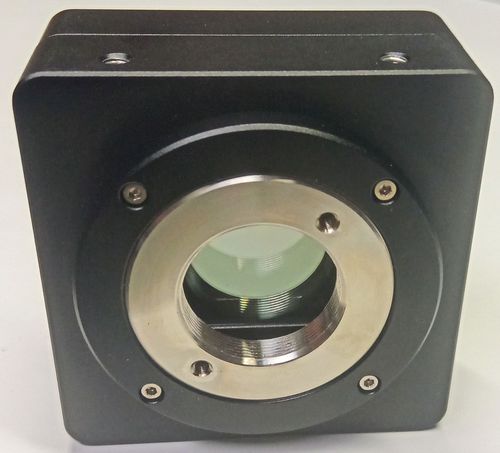

The SCA2020UV-TR camera includes the GSENSE 2020BSI (backilluminated), 1.2" sCMOS sensor with 2048x2048 pixel, which are 6.5x6.5µ in size. The camera has M42 mount with an adjustable C-Mount adapter. New is the external trigger I/O function. The max framerate at full resolution is 32fps. The SCA2020-UV-TR is high sensitive with a very low noise. The max exposure time is up to 60s. Conversation gain selectable between LCG, HCG, HDR. The camera comes complete with our EHDView software, an SDK and USB3.0 cable. Also available is a EHDView lite for MAC OS and Linux systems.
Catalogs
No catalogs are available for this product.
See all of EHD imaging‘s catalogs
