Machine vision camera EHD SCM-Series

laboratorymachine visionscientific vision

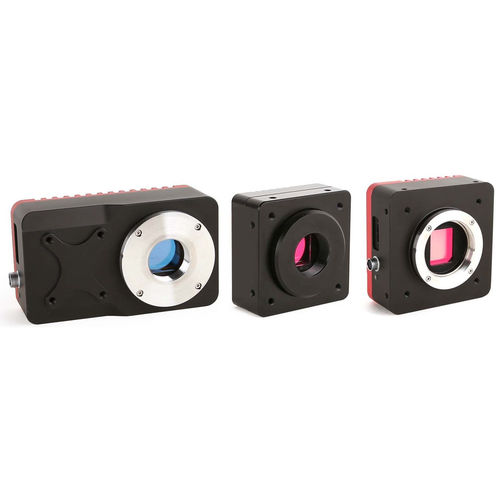

The EHD SCM-IUA series industrial USB3.0 cameras includes 1.1" and 1" Sony Pregius and Starvis CMOS color and monochrome sensors from 1.7Mpixel up to 20.0Mpixel. The SCM-IUA series supports external triggering and digital I/Os. Included with the camera is a powerfull image-processing software package EHDview, and also a SDK for Windows, Linux, MAC OS and Android. The sensor is integrated in a compact 68x68x28.1mm housing. - SCM432-M/C-TR, 1600x1100, 98fps - SCM178-M/C-TR, 3072x2048, 60fsp - SCM428-M/C-TR, 3200x2200, 51fps - SCM183-M/C-TR, 5440x3684, 19fsp The EHD SCM-IUB series industrial USB3.0 cameras includes 1.2" and 1.7" (APS-C format) GSENSE backilluminated an UV sensitive sCMOS monochrome sensors from 4.2Mpixel up to 43.0Mpixel. The SCM-IUB series supports external triggering and digital I/Os. Included with the camera is a powerfull image-processing software package EHDview, and also a SDK for Windows, Linux, MAC OS and Android. The sensor is integrated in a compact 118x68x23.3mm housing. - SCM2020-M-TR, 2048x2048, 45fps - SCM2020-UV-TR, 2048x2048, 45fps - SCM0806-M-TR, 7904x5432, 8.5fps The EHD SCM-IUC series industrial USB3.0 cameras includes Sony 1.8" APS-C and Full Frame sensors 2.7" Full Frame backilluminated color and Pregius CMOS monochrome sensors from 26.0Mpixel up to 60.0Mpixel. The SCM-IUC series supports external triggering and digital I/Os. Included with the camera is a powerfull image-processing software package EHDview, and also a SDK for Windows, Linux, MAC OS and Android. The sensor is integrated in a compact 118x68x23.3mm housing. - SCM571-C-TR, 6280x4264 - SCM342-M/C-TR, 6464x4852, 12fps - SCM455-M/C-TR, 9600x6400
