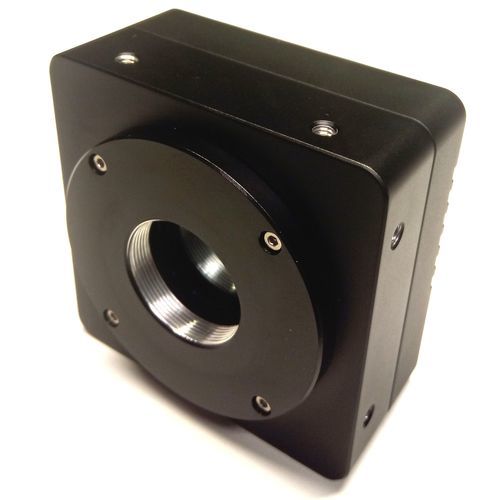

UV camera SCA9701-UV-TRindustrialmachine visionfor scientific applications
Add to favorites
Compare this product
Characteristics
- Applications
- industrial, machine vision, for scientific applications, for research and development, laboratory
- Technology
- HDR
- Function
- image processing
- Spectrum
- UV
- Sensor
- sCMOS
- Interface
- USB 3.0
- Resolution level
- high-definition, 1280 x 1024
- Resolution
- 1.3 Mpx
- Other characteristics
- high-sensitivity, low-noise, with measurement software
Description

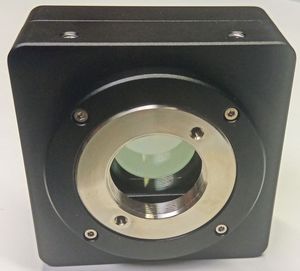

The SCM9701-UV-TR camera includes the GSENSE GLUX9701BSI (backilluminated), 1" sCMOS sensor with 1208x1024 pixel, which are 9.76x9.76µ in size. The max framerate at full resolution is 30fps. The SCM9701-UV is high sensitive with a very low noise of <2e-. The max exposure time is up to 60s. Conversation gain selectable between LCG, HCG, HDR. Selectable 8bit/16bit output. New is the external trigger I/O function. The camera comes complete with our EHDView software, an SDK and USB3.0 cable. Also available is a EHDView lite for MAC OS and Linux systems. M42-Mount with C-Mount adapter included.
