UV camera SCM487-UV-TRindustrialmachine visionfor production
Add to favorites
Compare this product
Characteristics
- Applications
- industrial, machine vision, for production, for research and development, laboratory
- Technology
- digital, HDR
- Function
- inspection, image processing
- Spectrum
- UV
- Sensor
- sCMOS
- Interface
- USB 3.0
- Resolution level
- high-definition, 2480 x 2480
- Resolution
- 8 Mpx
- Other characteristics
- high-sensitivity, with global shutter, low-noise, with measurement software
Description

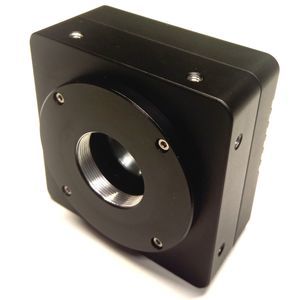

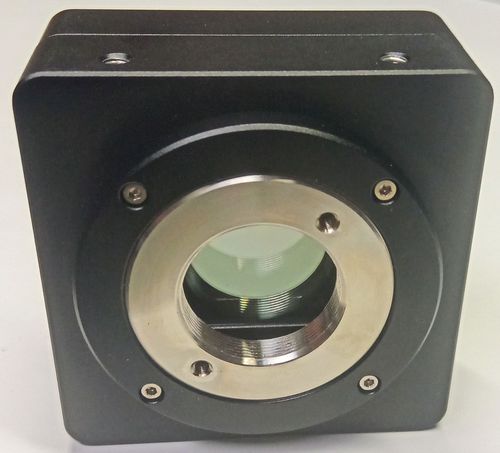

The SCM487-UV-TR camera includes the Sony Pregius IMX487 Global Shutter ,2/3" sCMOS sensor with 2480x2480 pixel, which are 2.74x2.74µ in size. The camera has M42 mount with an adjustable C-Mount adapter. New is the external trigger I/O function. The max framerate at full resolution is 45fps. The SCM487-UV-TR is high sensitive from 190nm with a very low noise. The max exposure time is up to 15s. Conversation gain selectable. The camera comes complete with our EHDView software, an SDK and USB3.0 cable. Also available is a EHDView lite for MAC OS and Linux systems.
