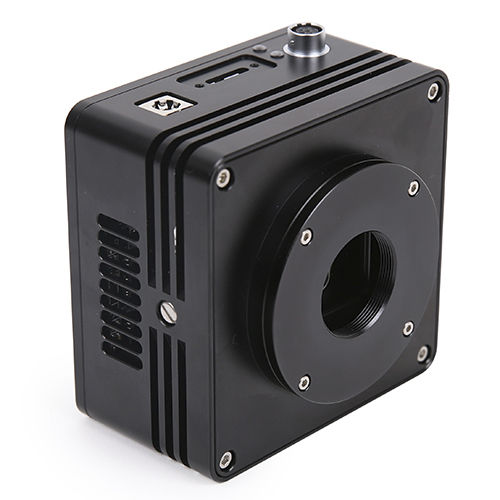

Cooled camera EHD CTR seriesindustrialmachine visionfor scientific applications
Add to favorites
Compare this product
Characteristics
- Applications
- industrial, machine vision, for scientific applications, for research and development, for production, for microscopes, for spectroscopy
- Technology
- digital
- Function
- inspection, image processing
- Spectrum
- infrared, full-color, monochrome, UV-Vis-NIR, Vis-NIR
- Sensor
- CMOS
- Interface
- USB 3.0
- Resolution level
- high-definition
- Resolution
- 2 Mpx, 2.3 Mpx, 20 Mpx, 6 Mpx, 20.2 mpx
- Other characteristics
- with global shutter, low-light, fluorescence, with measurement software, cooled
Description
SC-CTR series camera adopts SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate.
With the peltier cooling sensor chip to 5-10 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
SC-CTR series comes with advanced video & image processing application EHDView/EHDLite; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The SC-CTR can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
Sensors use is SC-CTR: IMX492, IMX183, IMX428, IMX432
