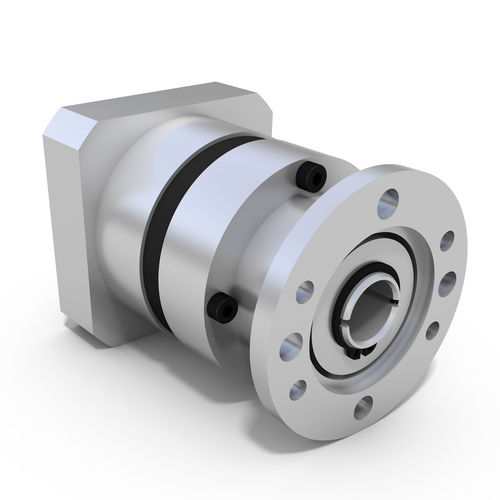

Planetary gearbox EPL-H series

coaxialhollow-shaft100 - 200 Nm

The low-backlash economy planetary gearboxes offer high performance and torque in a compact design. The one, two or three-stage gearboxes are available in five sizes for drive torques between 5 and 500 Nm. As a result of the high stiffness and overload capacity but at the same time low inertia, the EPL gearboxes can be used in a very wide variety of applications. For higher requirements on output loads, Eisele developed the gearboxes EPL 50X-155X as well as the EPL-Q series which is optimized for direct mounting via the squared output flange with through holes. The EPL-SA gearboxes are ideal for use with stepper motors as a result of an improvement giving an even lower inertia. As a further option we offer the hollow shaft EPL-H series. Key features: low backlash compact design high efficiency high stiffness low inertia high dynamic integral ratio high torque transmission honed toothing coaxial alignment of the input and output shafts input direction of rotation = output direction of rotation lifetime lubrication simple motor installation any installation position variable connection dimensions
