Aluminum apron cover Alutec GL20, GL50, finnedfor machines
Add to favorites
Compare this product
Characteristics
- Material
- aluminum
- Other characteristics
- finned, for machines
Description
Design

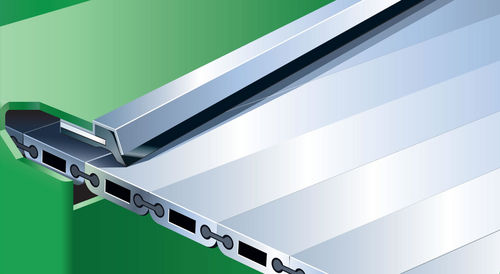

Anodized Alu-Profile, positively interlocked with coolant-resistant polyurethane hinges.
Alutec GLK/GL has a smooth surface which can be cleaned of chips and coolants and sealed to protect from chips and coolants by means of way wipers.
Traction Power of the Cover
Traction power of the hinge 20N/mm2
Example cover width 2,000mm:
2,000mm x 0.7mm = 1,400mm2
1,400mm2 x 20N/mm2 = 28kN
Forms of Supply
Alu Link-Type Apron Covers ready to be mounted, according to your drawings, sketches or specifications for apron width, apron length, type of attachment and diversion, with or without take-up reel.
Catalogs
Apron Link Covers
8 Pages
