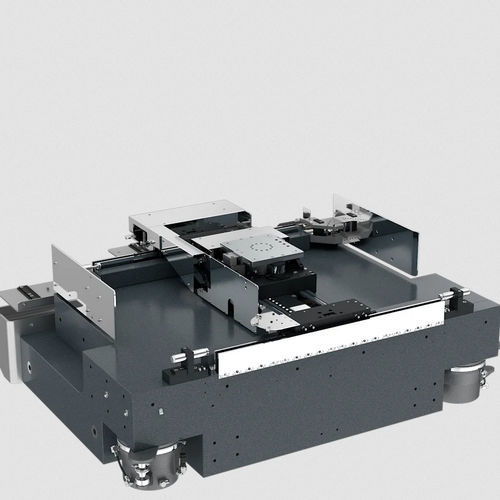

XY positioning stage EZ-0715 motorized2-axisprecision
Add to favorites
Compare this product
Characteristics
- Orientation
- XY
- Type
- motorized
- Number of axes
- 2-axis
- Other characteristics
- precision, air bearing
- Stroke
350 mm, 450 mm
(13.78 in, 17.717 in)- Speed
0.5 m/s
(1.64 ft/s)- Repeatability
20 nm
- Load
Max.: 25 kg
(55.12 lb)Min.: 0 kg
(0 lb)
Description
The EZ-0715 Gantry Stage is designed for high precision applications. Incremental measuring systems (Heidenhain LIP6 G0) and an optimized design allow a positioning accuracy of ± 250 nm and a repeatability of ± 25 nm for the single axes. The vacuum-preloaded slide and optimized mass distribution enable high rigidity in the smallest installation space. Ironless motors enable an acceleration of up to 10 m/s2 and a travel speed of up to 1 m/s. The end position is detected by inductive sensors. The slides are supplied with energy separately via symmetrically attached drag chains. The machine bed of the Gantry Stage is made of granite. Both axes can be customized. The XY system can be expanded to include a Z- and/or C-Axis.
