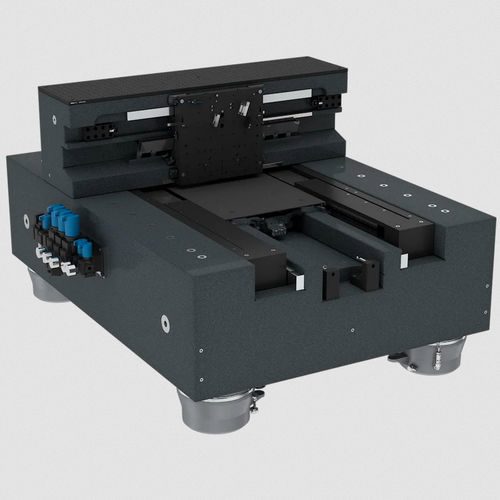

Tilt positioning stage EZ-0730
XYlinear motor-driven2-axis

tilt positioning stage
tilt positioning stage
tilt positioning stage
Add to favorites
Compare this product


Characteristics

Orientation
XY, tilt
Type
linear motor-driven
Number of axes
2-axis
Other characteristics
precision, high-speed, air bearing
Stroke

500 mm, 850 mm
(19.685 in, 33.465 in)

Speed

500 mm/s, 1,500 mm/s

Repeatability

20 nm, 40 nm

Load

8 kg, 50 kg
(17.64 lb, 110.23 lb)

Description

Intelligent design gives the EZ-0730 stage maximum rigidity and excellent repeatability, minimizing axis crosstalk. Built-in features: Impulse decoupling to minimize crosstalk even at high accelerations. Weight optimization by using carbon for the lower slide. Use of carbon structures with thermal expansion close to 0 to minimize harmful temperature effects. Extremely rigid chuck due to integrated flat 11-zone vacuum clamping device with high-precision tip/tilt adjustment using sophisticated pressure membrane technology. Minimization of disturbance forces emanating from the energy chain due to novel drag chain concept. Ironless drives and high-precision scales (Heidenhain LIP6 G0). The machine bed is made of granite. The axes can be customized according to the customer’s requirements
