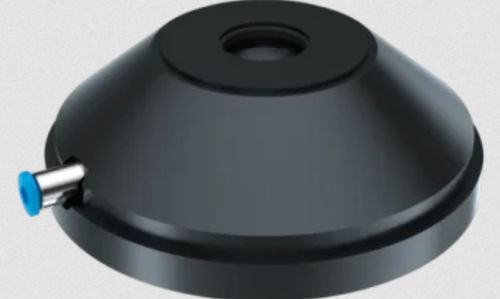

Air bearing pad EZ-0053 series

Our EZ-0053 bearing pads are standard round air bearings with high load capacity and low air consumption, optimized for high stiffness and good damping. The bearing pads move on an air film of 3 to 7 µm. In contrast to porous air bearings, this type of bearing is supplied with compressed air via a nozzle. Optimum characteristic curves are achieved by specifically tuning the parameters of nozzle diameter, channel structure, channel depth and bearing contour. Our special emergency running layer makes the bearing elements robust and durable. Pressure screws with ball heads allow uncomplicated mounting and precise adjustment. Standard sizes range from outside diameter 20 to 360 mm, other sizes are available upon request.
