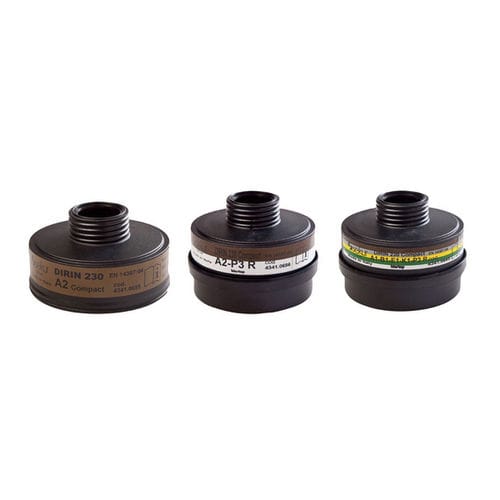

Gas filter DIRIN 230 A2 compact

cartridgerespiratorthread connection

Product information • protection against organic gases and vapours with a boiling point >65°C Product designation: Gas Filter DIRIN 230 A2 compact Applied standard: DIN EN 14387 (DIN = German Institute for Standardization) Utilization: In connection with full masks (DIN EN 136) and half masks (DIN EN 140) with round thread onnection (DIN EN 148-1). Protection against organic gases and vapours with a boiling point >65°C Description: The filter case is round and consists of filter pot and filter lid. The filter pot contains the round thread connection according to DIN EN 148-1; the filter lid is open to the inhalation side. There is a filter bed with activated charcoal. This is firmly fixed by the filter case and nternal screens. Both filter openings are locked by water-vapour-proof cover caps. Materials: All used materials are incinerated. Filter case: Plastic (ABS) Sorbents: impregnated active charcoal Cover cap: Plastic Banderole: Paper Operating principle: By addition to sorbent (Impregnated active charcoal), the gases and vapours will be removed from the ambient air. Weight: approx. 135 g Inhalation resistance: at 30 l/min, constant flow max. 1.4 mbar (according to 14387) at 95 l/min, constant flow max. 5.6 mbar (according to 14387) Marking: Trade mark of manufacturer (LOGO) Product designation Applied standard Consider the information brochure Expiry of shelf-life (MM/YYYY) Lot-No. (PARTITA) CE-Identification Notified body Identification color: brown Handling: Open the Filter (Remove the cover caps) and screw the Filter firmly into the facepiece connector directly before use. Use the Filter in accordance with the information brochure.
