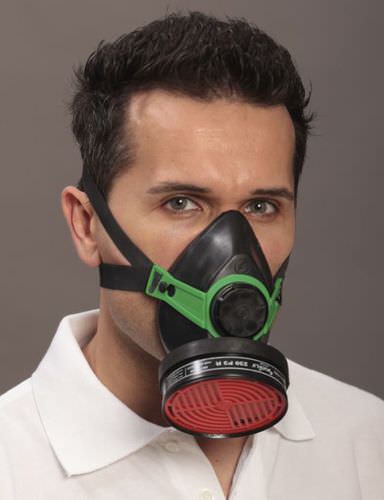

Half-mask respirator Polimask 230

single-filterthread connection

Product information • filter connection special thread 95 mm • broad, supple inner sealing lips guarantee close-fitting • made of soft EPDM • special construction ensures a large field of vision and low breathing resistance • owing to the special design the mask is suitable for spectacle wearers Applied standard: DIN EN 140 (DIN = German Institute for Standardization) Utilization: In connection with respiratory filter of the series 230 (special thread 95mm) as filtering device. The scope of protection is determines by the product information, technical standards and valid application rules. Description: Faceblank enclose the nose, mouth and chin. Materials: Faceblank EPDM (Ethylene-Propylene-Diene-Mixture) Fastener for head harness Polyamide Head harness Rubber Inhalation- and Exhalation valve Rubber Exhalation valve fit Plastic (ABS) Exhalation valve cap Polyethylene Weight: approx. 145 g Inhalation resistance: at 30 l/min, constant flow max. 0.5 mbar (EN 140) at 95 l/min, constant flow max. 1.3 mbar (EN 140) at 160 l/min, constant flow max. 2.0 mbar (EN 140) Marking: Trade mark of manufacturer (LOGO) Product designation Applied standard Manufacture year and -month CE-Identification Notified body Type identifying marking Exhalation resistance: at 160 l/min, constant flow max. 3.0 mbar (EN 140) Filter connector Polypropylene
