USB spectroradiometer RSB-01

measurement

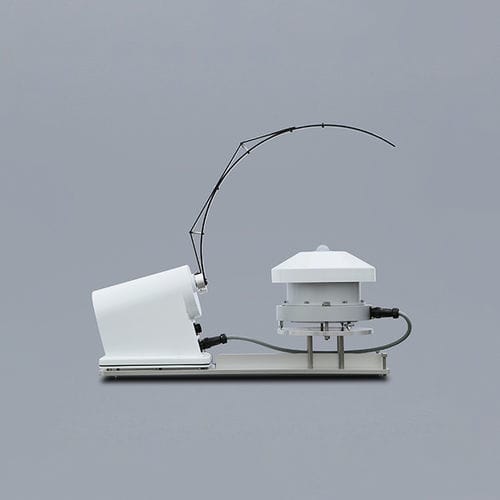

Paired with an EKO Spectroradiometer, the RSB-01 Rotating Shadow Band is a compact, all-weather spectral measurement alternative to conventional x3 component sun tracker systems. Paired with an EKO Spectroradiometer, the RSB-01 Rotating Shadow Band is a compact, attractive, low-cost, all-weather spectral measurement alternative to conventional DNI, GHI, and GHI sun tracker systems. Recommended for applications with limited space and lower budgets, the MS-711 Global Spectroradiometer combined with an RSB-01 delivers accurate DNI measurements that are consistently on par with a sun tracker mounted MS-711 DNI Spectroradiometer. The RSB-01 is compatible with all EKO Spectroradiometers. Shading angle - 5º - - Measurement time Interval - 60 Sec - - Operating temperature range - -10 to 50 °C - - Power supply - 100 to 230 VAC - - Power consumption - 8 to 15 W - - Dimensions - 300 mm (W) x 700 mm (L) x 590 mm (H) - - Weight - 11 kg - - Communication - RS-422 to USB
