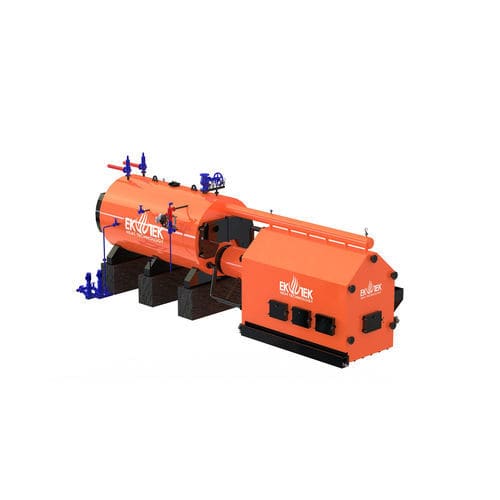

Steam boiler VOLCANO series

gassolid fuel

“• In our front furnace boilers, in order to provide sufficient heat transfer area for solid fuel combustion, a traditional 3-Pass Scotch Type Smoke/Flame Tube Steam Boiler is designed by adding a front furnace consisting of a water pipe bundle in front of it. Our boilers are designed for minimum 4.500 kcal/h (flame temperature 1200 C°) fuel. Please contact our company to burn lower calorie fuel. • Blowdown and flanged cleaning are available in the lower collectors. • While calculating the boiler heat load, the optimum heat load is given to the boiler heating surface area. •Thanks to the pre-furnace addition, the combustion chamber completely eliminates the problem of not providing sufficient heat transfer surface in solid fuel applications compared to standard gas/liquid fuel boilers. • Since the need for extra heating surface and combustion chamber is eliminated by the front furnace, solid fuel burning efficiency is much higher in 3-pass Scotch Type Boilers compared to solid fuel burning. • If requested, automatic ash discharge and automatic lignite loading system can be added to our solid fuel boilers. • Thanks to its large water and steam volume, it provides high performance in intense and continuous working conditions and sudden steam withdrawals. • Thanks to its high heating surface area, it provides the opportunity to obtain drier and higher energy steam. • We can manufacture movable Grate and rotating Grate Upon request, • PLC control system can be added upon request. • OUR COMPANY RECOMMENDS YOU TO USE AUTOMATIC BOTTOM BLOWdown AND SURFACE BLOWdown IN THE SYSTEM. (PACKAGE MANUAL BLLOWERS ARE AVAILABLE IN THE SYSTEMS)
