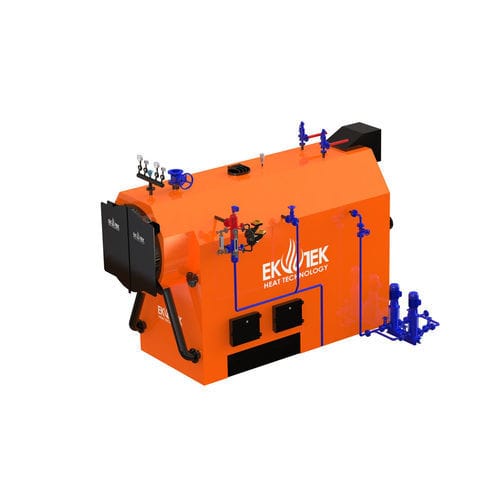

Steam boiler HYBRID KY SSK series

gascoalsmoke tube

“• Lignite coal, olive pomace, pellets, sawdust, SUNFLOWER SHELLS, HAZELNUT SHELLS, etc. HYBRID BOILER is formed by combining granular Water tube and Flame smoke tube boiler types in the same body. •Water-tube primary furnace mounted on a rotary grate or stoker is manufactured at the required height as a result of detailed and precise calculations, and a large volume combustion chamber is formed on the rotary grate. Scotch type boiler with Flame Smoke tube and radiation heat boiler are connected to each other by water collector pipes. • Large-volume combustion chamber is required to maximize flame length, flame radiation, gas and heat generated as a result of combustion in solid fuels. • Second (secondary) module Flame smoke tube boiler has two passages and is designed to achieve maximum efficiency for the required capacity. The smoke volume, which decreases as the temperature decreases, is designed to pass through the boiler at the most appropriate speeds. By keeping the passageways of the flame long in the boiler, a large part of the heat energy resulting from the combustion remains in the boiler and steam has been used in production. • Thanks to its larger steam volume, the system can instantly respond to peak steam drafts, and flash steam production is provided thanks to the water-tube primary furnace. • Changing the pipes of the fire smoke tube boiler; The front and back covers can be opened and changes can be made very easily. • Since the Hybrid Steam boiler fully reflects all the calories of the burning fuel to the steam production process, it is possible to obtain the maximum fuel value and convert it to steam.
