Potassium dihydrogen phosphate (KH2PO4, KDP) crystal
non-linear opticalelectro-optic

potassium dihydrogen phosphate (KH2PO4, KDP) crystal
potassium dihydrogen phosphate (KH2PO4, KDP) crystal
potassium dihydrogen phosphate (KH2PO4, KDP) crystal
potassium dihydrogen phosphate (KH2PO4, KDP) crystal
Add to favorites
Compare this product


Characteristics

Crystal type
potassium dihydrogen phosphate (KH2PO4, KDP)
Technical characteristics
non-linear optical, electro-optic

Description

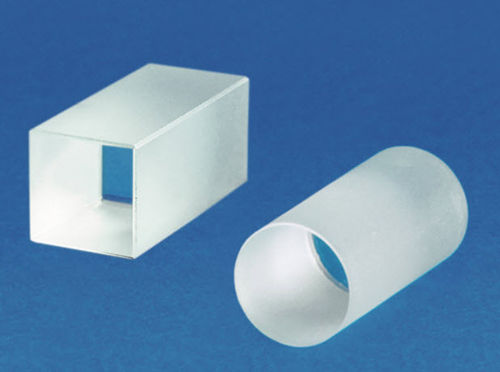

Applications: Laser frequency conversion – harmonic generation for high pulse energy, low repetition (96% electro-optic (e/o) crystal - DKDP for Q-switching application; Standard dimensions of electro-optic (e/o) DKDP crystals for Q-switching are cylinders dia 9 x 20 mm and dia 12 x 24 mm however manufacturing of custom size and rectangular shape crystals is available; Gold evaporated or silver paste electrodes are available; Dielectric thin film AR coatings for specified laser wavelengths are available; Typical quarter wave voltage 3.4 kV at 1064 nm; Typical contrast ratio between crossed polarizers better than 1:2000; Damage threshold of AR coated DKDP surface >5 J/cm2 at 1064 nm, 10 ns pulses.
