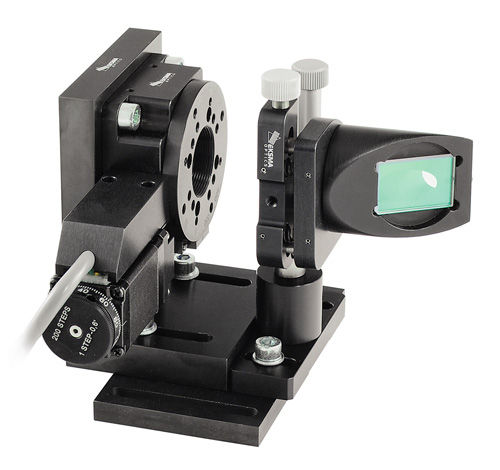

Motorized attenuator 990-0071M

laser beamvariable

Motorized Variable Attenuator / Beamsplitter consists of special design Opto-mechanical Adapter for Polarizer at 56° and Precision Opto-mechanical Holder. Thin Film Brewster type polarizer, which reflects s-polarized light at 56° while transmitting p-polarized light, is housed into the Adapter for Polarizer at 56°. Quartz Half Waveplates are housed in Motorized Rotation Stage. The intensity ratio of those two beams may be continuously varied without alteration of other beam parameters by rotating the waveplate. The intensity of either exit beam, or their intensity ratio, can be controlled over a wide dynamic range. P-polarization could be selected for maximum transmission, or high-purity s-polarization could be reflected when maximum attenuation of the transmitted beam takes place. The holder allows to adjust angle of incidence of the Thin Film Brewster type polarizer by ±2° and to get the maximum polarization contrast.
