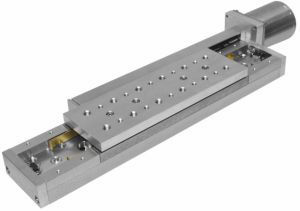

Translation stage motorizedvacuum-compatible
Add to favorites
Compare this product
Characteristics
- Orientation
- translation
- Type
- motorized
- Other characteristics
- vacuum-compatible
- Stroke
Min.: 50 mm
(1.969 in)Max.: 200 mm
(7.874 in)
Description
Narrow
Compact design
Resolution 0.31 µm (1/8 step)
High guide way accuracy
Lead screw pitch 0.5 mm
X-Y-Z configurations available
Non vacuum version
Vacuum Compatible Motorized Stages are equipped with vacuum compatible stepper motor. Stages stack in X-Y configurations directly using M6 screws. Angle Bracket 810-0160V is used to mount stages for vertical translation; it is also used for X-Y-Z configurations. To mount stages on a flat surface you will need 820-0115V base plate.
