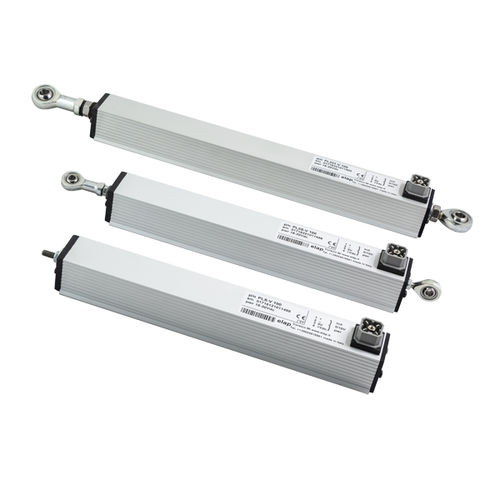

Linear position sensor PLS-V

conductive plastic potentiometeranalog outputIP65

The transducers series PLS-V, PL2S-V and PL231-V provide the 0÷10Vdc analogue output signal proportional to the position reached by the rod. The active electronics makes it easy to interface the transducers to external devices such as PLC, controllers, visualisers etc., besides granting a high quality signal. The transducers series PLS-V, PL2S-V and PL231-V are supplied with 18÷30 Vdc voltage; the measuring strokes range from 50 to 950 mm. The conductive plastic resistive element ensures the product long life, excellent independent linearity and a virtually infinite resolution. Thanks to the stout aluminium case which provides high protection against environmental agents, potentiometers series V can stand applications in severe conditions, even outdoor. Several fittings – ball joints, self-aligning joints, feeler pin – and different mechanical versions – PL2S-V, PL231-V – complete the series. AVAILABLE STROKES mm 50 – 100 – 150 – 200 – 250 – 300 – 400 – 500 – 750* – 950* *750 mm for series PLS-V, PL231-V – 950 mm series PLS-V TECHNICAL SPECIFICATIONS supply voltage 18÷30 Vdc 0÷10 Vdc voltage output proportional to the rod position conductive plastic resistive element 100,000,000 operations life infinite resolution excellent linearity moving speed up to 5 m/sec. stout aluminium case easy fixing by clamping brackets electrical connections by orientable connector operating temperature: -20° ÷ +80° C IP65 protection degree
