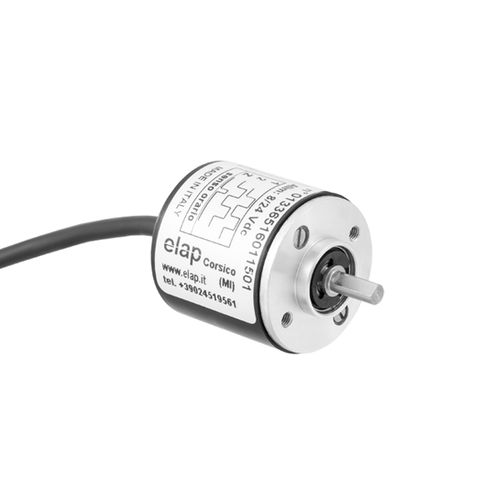

Incremental rotary encoder E30

solid-shaftIP54industrial

Engineered on the basis of a compact innovative technology, the incremental encoders E30, offer great accuracy and reliability in a small size, and an excellent price/performance ratio. The incremental encoders E30 are available both in the bidirectional version (E30) and in the bidirectional type with zero reference pulse (E31); the pulses per revolution no. ranges from 2 to 12500. Their body diameter measures 30 mm only, with shaft diameter 4 or 6 mm. The encoder E30 is housed in an ABS plastic case, with axial cable or connector outlet. The output signals can be provided in NPN open collector, push-pull or line-driver format. TECHNICAL SPECIFICATIONS • - Round flanged encoder, body Ø 30 mm • - Shaft Ø 4 mm – optional 6 mm • - Pulses per revolution no.: 2 ÷ 12500 • - Supply: 5Vdc or 8/24Vdc • - Output signals: push-pull, NPN open collector, 5V line driver (supply 5V or 8/24V), 8/24V line driver (supply 8/24V) • - Max. frequency: 100/150 KHz • - Protection against short circuits and polarity reversal • - Axial or radial cable, 1 m long • - Protection degree: IP54
