Stationary thickness gauge EV 01

rubberdigital display

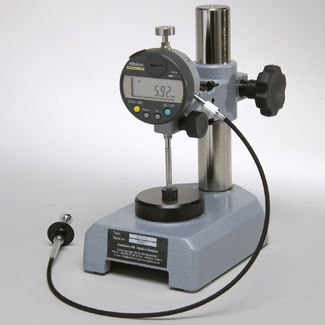

Thickness Gauge, EV 01 The EV 01 Thickness Gauge is intended for rubber or plastic thickness measurement according to ISO 23529 and compression set measurement according to ISO 815. Thickness Gauge EV 01 F is a special version, with the possibility to set the parallelity between measuring foot and table. Click image to enlarge. Standards Comply with ISO 23529, ISO 815 and equivalent standards The thickness gauge includes Digital gauge, modified for correct measuring pressure for rubber or plastic testing 10 mm gauge block Lifting cable Measuring foot Weight for thickness measurements Stand, of stable construction, with the possibility of fine adjustments of the height Optional accessories EV 01.04 – Interface kit USB, for computer connection, including cable and foot pedal EC 02 – Software for Windows computers, for thickness measurements and compression set. The program collects the values from the connected instrument and the results can be printed per material as a trend graph together with statistics.
