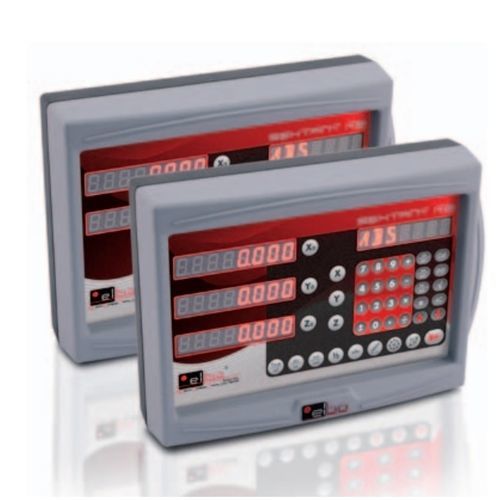

Position indicator SEXTANT M2

digitalpanel-mountfor machine tools

Patented: n° 001865403 Risolution: 0,5 - 1 - 2 - 5 - 10 micron Axes: X - Z DRO designed for the application on milling or boring machines, with an updated design that includes a practical handle built into the front panel, which facilitates positioning the operator. The structure is entirely made of aluminum alloy. It can display up to three axes. It provides the user with several useful functions to simplify the work on milling machine, in addition to the trigonometric calculator that interacts with the counting. •Work piece zero •mm/inch conversion •Absolute/incremental conversion •Memory buffer •Ref memory •Memory for 199 origins •Linear error compensation •Coordinattes entry •Trigonometric calculator •Drilling on diameter (flange) •Drilling on diagonal •Centering •Inclinated machining •Weight: 2,5 Kg •Power supply: 115 + 230 Vac; 50-60 Hz; 30 VA
