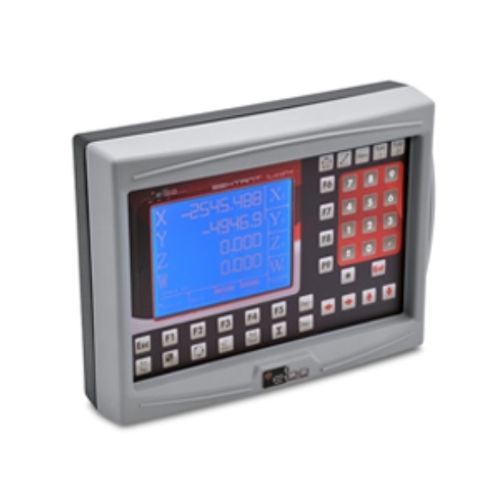

Position indicator SEXTANT TP

digitalpanel-mountfor machine tools

Resolution: 0.5 - 1 - 2 - 5 - 10 micron Axes: X - Y - Z - W DRO of the SEXTANT series, it is dedicated to the radial drill. It is enough to install a scale on the flag and an encoder on the column, to transform the radial drill in a normal coordinate machine X, Y. The software of the DRO converts the data of the performing production in polar coordinates (radius and angle) that leaded to zero, in sequence, allow to realize the previously programmed manufacturing in Cartesian coordinates (X, Y). Resulting from a model for milling, it maintains all the functions, origins, cycles of drillings on circle, on line, on mold etc. •99 work origins •99 tools •20 programs/piece (2000 blocks/prog.) •mm/inch conversion •Absolute/incremental conversion •Linear error compensation •Non-linear error compensation •up to 200 points for each axe •Can display the 4° axe in degrees •Advanced functions: - holes on flange - holes and arc - holes on line and grid •Angle measurement •Radius/diameter •Piece centering •Configurable axes summation •Flange centering •Serial output RS232 •Upgrade software •Graphical menu for user support •Weight: 2,5 Kg •Power supply: 115 + 230 Vac; 50-60 Hz; 30 VA
