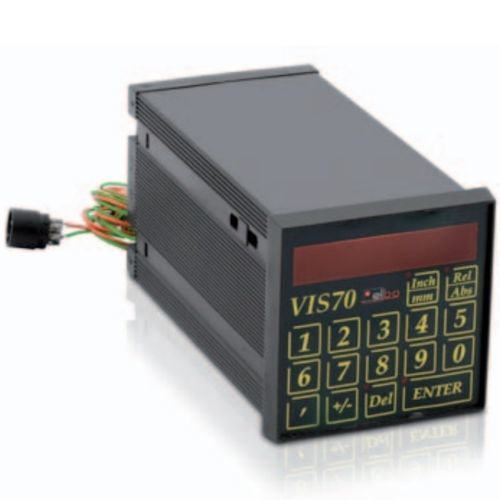

Position indicator VIS 70

digitalrecessed

DRO realized in DIN recessed box 70 x 70 mm. Low voltage power supply, 12 o 24 Vdc, it can be connected to measuring systems with TTL 5V signal. The display is made of six digits plus the sign, with variable resolution. It has clearing functions, dual counter relative absolute, and conversion mm inch. It can handle the zero signal coming from the measuring systems, assigning, if required, a value of off set. •Resetting the quota •Setting a quota •Conversion Absolute/Relative •Conversion Radius/Diameter •Conversion Mm/inch •Searching for the zero reference on the line •Storing the last quota
