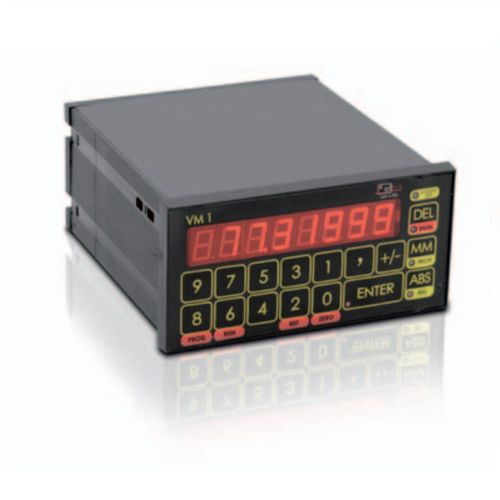

Position indicator VM 1 - VM 1E

digitalrecessedTTL

DRO with one axis realized in a DIN recessed box 140 x 70 mm. 220 Vac power supply, it can be connected to measuring system with TTL 5V signal, with power supply 5 Vdc or 12 Vdc. The display is made of six digits plus a sign, with variable resolution. It has clearing functions, dual counter relative absolute and conversion mm inch. It can handle the zero signal coming from the measuring systems, assigning, if required, a value of zero outside As an option it can have a crossing signal going through the zero and the transmission of the displayed value via RS232. •Resetting the quota •Setting a quota •Conversion Absolute/Relative •Conversion Radius/Diameter •Conversion mm/inch •Searching for the zero reference on the line •Storing the last quota
