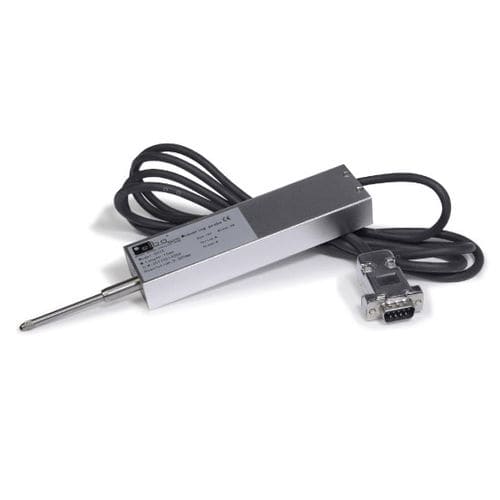

Measurement touch probe D315opticaldigital
Add to favorites
Compare this product
Characteristics
- Type
- measurement
- Technology
- optical
- Other characteristics
- digital
- Resolution
0.001 mm, 0.005 mm, 0.01 mm
(0.00004 in, 0.0002 in, 0.00039 in)
Description
Digital tracer point with TTL output. 5Vdc
•Aluminium body.
•Measures using optical system and reads on
•crystal bar.
•Standard connection diameter 8 mm
•Stroke 15 mm
•Resolutions 0.01 - 0.005 - 0.001
•Mechanical dimensions: 138 x 35 x 21 mm
