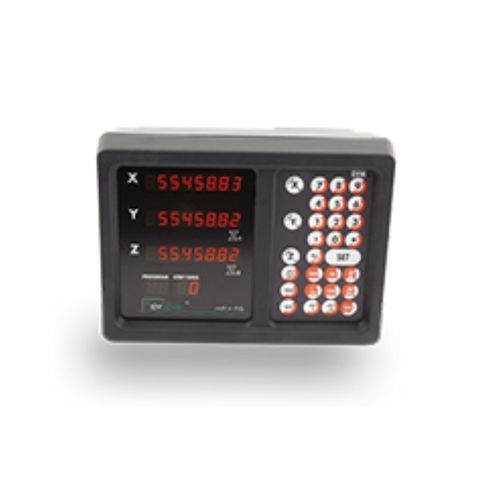

Position indicator EVM 2/3/4

digitalpanel-mountfor machine tools

Risolution: 1 - 5 - 10 micron Axes: X - Y - Z - W It is the most complete version of the EV series (Beta). It 'a 3-axis DRO, but, if necessary, it is able to control a fourth axis that will be added to one of the main three. It provides several features for the centering, for the calculation of the drilling, to compensate expansion coefficients in manufacturing molds. As an option, it can provide, in output, approaching zero signals and the zero-crossing. It has also a working memory of 600 steps, divided over a maximum of 99 programs, in order to store the dimensions of the parts to realize in small series. •Work piece zero •mm/inch conversion •Absolute/incremental conversion •Memory buffer •Ref memory •Memory for 9 origins •Linear error compensation •Coordinattes entry •Drilling on diameter (flange) •Finding the center between two points •Finding the center of the circle •Stortage by self-learning •Flange calculation in polar coordinates •Flange calculation in Cortesia coordinates •9 flange storage •Memory for 600 coordinates (3 axis) •Weight: 2,0 Kg •Power supply: 115 + 230 Vac; 50-60 Hz; 30 VA
