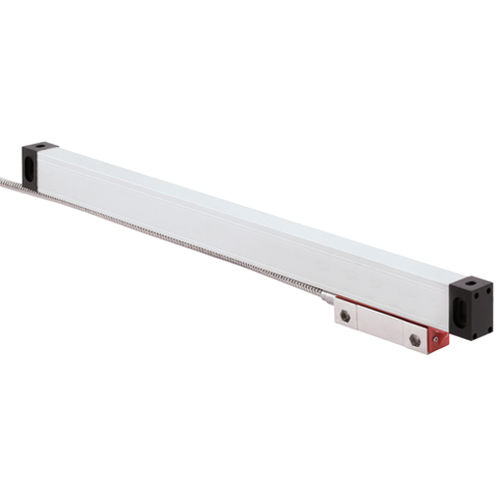

Absolute linear encoder GT seriesopticalsealeddigital
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- optical
- Construction
- sealed
- Output signal
- digital
- Supply voltage
- 5 VDC
- Protection level
- IP53
- Resolution
1 µm, 5 µm
- Linear encoder speed
0.17 m/s, 0.83 m/s
(0.56 ft/s, 2.72 ft/s)- Process temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
The GT and GR series have been designed to achieve quality and reliability at competitive prices.
They can be installed on both Machine Tools and Measurement Instruments and are available with TTL (for DROs) and EIA 422 A (for CNC) output signals.
Travels range from 50 mm up to 1’200 mm with resolution of 5 micron and 1 micron.
The supply includes everything is necessary for a quick and easy installation (aluminium protection, brackets, screws, etc.)
All scales are laser inspected.
