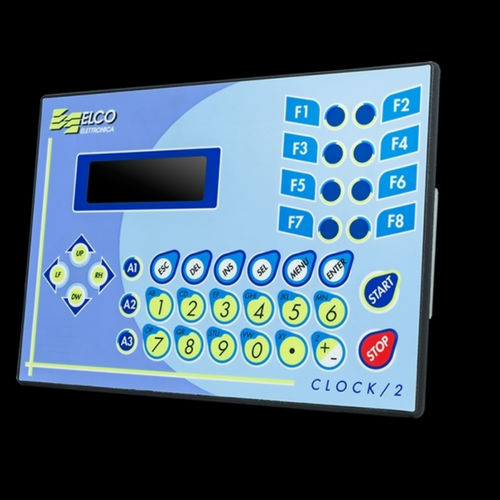

HMI with keyboard CLOCK2

panel-mountModbusCANopen

l PLC / CNC / HMI Clock2 represents the optimal solution by integrating all the functions of a PLC, axis control and operator interface within the same product. It has an extremely flexible configuration and is entirely programmable to Ladder through the Elco Ladder development environment. TECHNICAL FEATURES > 24V 1A power supply > 4x20 display (H: 5 mm) > 35-key mechanical keyboard > Polyester silk screen for industrial environments > Plastic front DIMENSIONS > Frontal H: 162 mm / L: 231 mm > Depth P: 39 mm RESOURCES > 16 - 32 digital inputs 24V > 16 - 32 digital outputs 24V 1A > 2 - 4 encoder inputs NPN / PUSH PULL / LD 5/12 / 24V > 2 - 4 analog outputs +/- 10V 12 BIT > 2 pulse direction outputs 5V LD (up to 2 MHz) > 2 - 4 - 6 analog inputs 0 / 10V or 4-20 mA or PT100 12 BIT > 1 - 2 RS232 > 1 RS485 (MODBUS RTU) > 1 CanBus CanOpen
