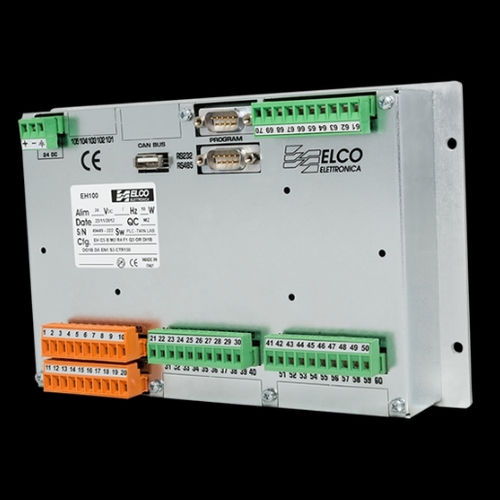

Compact PLC EH100
boxwith integrated I/Oanalog inputs

Compact PLC - EH100 - ELCO Elettronica di A. Ligabue e C. snc - box / with integrated I/O / analog inputs
Compact PLC - EH100 - ELCO Elettronica di A. Ligabue e C. snc - box / with integrated I/O / analog inputs
Add to favorites
Compare this product


Characteristics

Type
compact, box
Input/output
with integrated I/O, analog inputs, digital input, digital outputs, analog outputs
Network
RS485, for fieldbus, CANopen
Applications
management

Description

The PLC / CNC EH100 represents a compact and economic solution for managing automations of various kinds: providing up to 32 + 32 digital I/O, several types of analog inputs and having 4-axis management is ideal for any type of automation . Allows to be interfaced with various remote operator panels, alphanumeric and touch screen. TECHNICAL FEATURES > 24V 1A power supply > Box version DIMENSIONS > Frontal H: 144 mm / L: 226 mm > Depth P: 39 mm RESOURCES > 16 - 32 digital inputs 24V > 16 - 32 digital outputs 24V 1A > 2 - 4 encoder inputs NPN / PUSH PULL / LD 5/12 / 24V > 2 - 4 analog outputs +/- 10V 12 BIT > 2 pulse direction outputs 5V LD (up to 2 MHz) > 2 - 4 - 6 analog inputs 0 / 10V or 4-20 mA or PT100 12 BIT > 1 - 2 RS232 > 1 RS485 (MODBUS RTU) > 1 CanBus CanOpen
