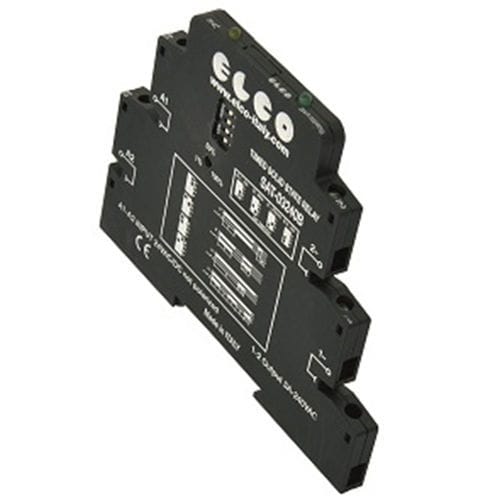

DIN rail solid state relay S seriesDCACslim
Add to favorites
Compare this product
Characteristics
- Control voltage
- AC, DC
- Features
- slim
- Mounting
- DIN rail
- Switching current
3 A, 4 A
- Output voltage
Min.: 0 V
Max.: 275 V
- Output current
3 A, 4 A
- Width
6.2 mm
(0.24 in)
Description
Din rail mounting solid state relays | Solid state relays
Technical Data
Non polarized input
Led input voltage
Output voltage led
4A -24VDC or 3A -240VAC timed output
Multi-Function : 4 functions of timing
4 time scale, from 0,1s up to 6h
Zero crossing commutation for models with AC voltage output
or instantaneous for DC voltage output models
Output voltage from 12 to 275 VAC or from 0 to 35V DC
2500V input-output insulation
RC filter protection for AC models
Breadth 6,5mm
Dir bar mounting
Comb for in parallel interface connection
