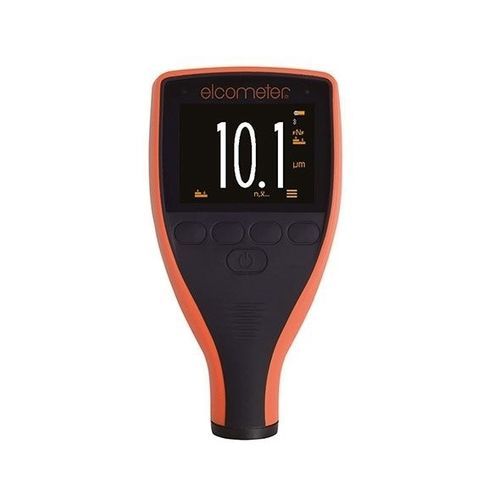

Portable thickness gauge 415 series
coatingdigital displayeddy current

portable thickness gauge
portable thickness gauge
portable thickness gauge
portable thickness gauge
portable thickness gauge
Add to favorites
Compare this product


Characteristics

Type
portable
Applications
coating
Technology
digital display, eddy current, magnetic induction
Calibration
automatic calibration
Other characteristics
portable
Measuring range

Max.: 1,000 µm

Min.: 0 µm

Description

The new Elcometer 415 Industrial Paint & Powder Thickness Gauge provides simple, fast and accurate coating thickness measurements on smooth and thin industrial paint and powder coatings. “The new Elcometer 415 Paint Thickness Gauge doesn’t just take a thickness measurement” In addition to the coating thickness, the new Elcometer 415 Paint Thickness Gauge displays the key statistical values required to assess the overall industrial finishing; number of readings (n), average (x), lowest (Lo) and highest (Hi) paint thickness. “Stay accurate with simple calibration” This new, easy to use, Elcometer 415 Paint Thickness Gauge has 1 point & 2 point calibration, ensuring accurate measurements on smooth & thin industrial paint & powder coated surfaces. “Seamlessly connect to any PC, Android™ or iOS mobile device” As each measurement is taken the new Elcometer 415 instantly transmits the thickness values via USB or Bluetooth®1 to your PC or mobile device using ElcoMaster® or your own software application. Elcometer 415 Paint & Powder Coating Thickness Gauge The new Elcometer 415 Paint Thickness Gauge automatically switches between ferrous and non-ferrous metals. Designed to measure cured paint and powder coatings up to 1000μm (40mils), the paint thickness gauge is ideal for the industrial paint & powder market. With a reading rate of 60+ readings per minute, the new paint and powder thickness gauge allows to inspect more industrial materials in less time. Compatible with ElcoMaster® software and ElcoMaster® Mobile App, individual paint and powder thickness readings can be transferred via USB or Bluetooth® to PC or a mobile device for analysis and instant report generation
