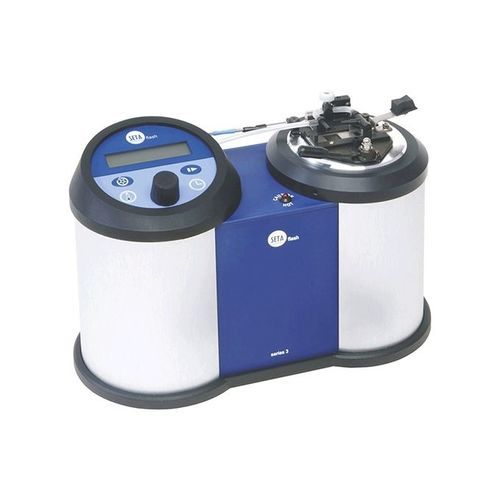

The Elcometer 6910/1 Setaflash 'Series 3' Closed Cup Tester provides temperature, sample size, test time and flash detection status.
A wide range of features ensures ease of operation and requires minimum operator skill. Test parameters are set via the keypad and a digital display provides temperature, sample size, test time and flash detection status. Default ‘Auto’ values are available for standard test conditions.
The Elcometer 6910 Closed Cup Tester can test from ambient to 300°C (572°F). Temperature is factory calibrated but facilities for user verification and calibration are incorporated.
Flash Point is automatically detected using a thermally activated detector, reducing the risk of operator error and minimising the potential danger of inhaling fumes during a test. A rechargeable gas tank with On/Off switch and fine adjustment are integral to the unit. Supplied with a 2ml (0.067fl oz) syringe and ignitor.
To test below the ambient temperature, an optional cooling module, suitable for temperatures as low as approximately 5°C (41°F), should be ordered.
