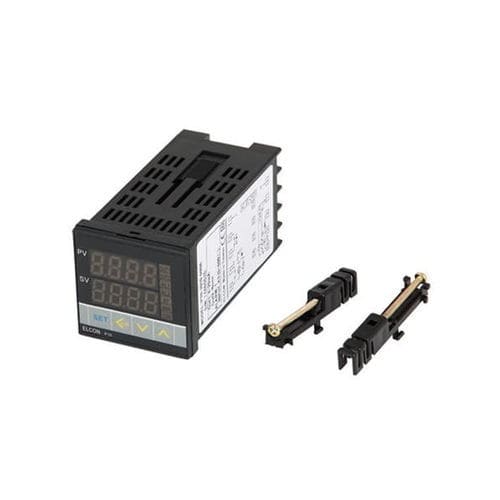

Heating controller P10

P10 PID Heat Controllers are controllers that can provide very precise heat controls controlled from the dijtal display, with 4 available keys (mode/esc, up, down and select) and parameter settings entered. Very fast PID+ Self Tuning with 16-bit microprocessor processor • Selectable multi-input type (RTD, Thermocous, Analog Signal Input, etc.) • Multi-selectable main control output type (Relay, Voltage, AnalogUe Output, etc.) • SSR (Solid State Relay), SCR (Power Regulator) can be used for all types of relay and engine rides • Hot/Cold control can be selected.• Dual Output models and dual PID models (optional) • Provide the desired control with 26 Alarm functions • Models that can provide 16 step control (optional) • Modbus communication with RS-485 at 38,400 bits/s (optional) • Read the output current with HBA (Heater Break Alarm) and control it with alarm contact. (optional) • With re-transmitting, it converts PV or control output into analog signal output type, making it available with recorder and other devices. • AC/DC selectable device voltage supply. • On/Off, P, PI,PD ve PID kontrol türleri • Ability to work in compatible with recorders • Standard and Process control types and two different structures • Water Proof models (optional) PID Heat Controllers are controllers controlled from the dijtal display, where you can provide very precise heat controls (up to 0.1 degree sensitivity) with 4 available keys (mode/esc, up, down and select) and parameter settings entered.
