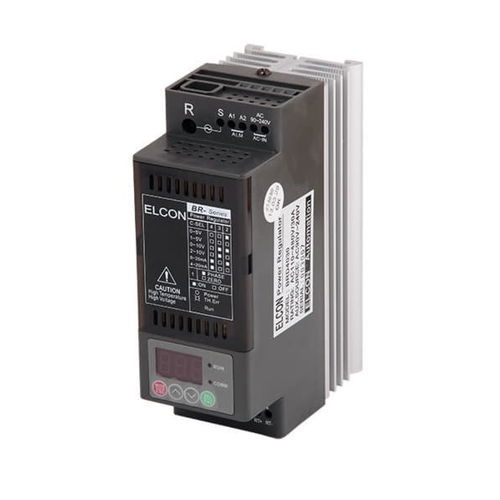

Analog power controller BR

phase

Phase-triggered control and zero cross control - 6 different input signal types (0-5V, 1-5V, 0-10V, 2-10V, 0-20mA, 4-20mA) Built-in fuse protection and easy repair for space saving - Built-in overheat protection and coolant temperature display Built-in RS-485 communication function Viewable input commands, output current, output current, percent output, coolant temperature and error messages Adjustable buffer start time and overload time - Error output connection and schedule setting can be made. - Full function models include thyristor blowout, fuse failure, heater wire burn-out and overload protection. Technicial Specifications: - 6 Analog input types (0 ~ 5V, 1 ~ 5V, 0 ~ 10V, 2 ~ 10V, 0-20mA, 4-20mA) - Control by potentiometer Linearity between - 0.4% / 1% - Isolated supply and operating voltage - Phase angle control or zero crossing control can be selected - Protection with fast insurance - RS-485 communication (Available in Model A.) - Over Current Protection - High Temperature Protection - Ability to monitor Input Type, Output Current or Output Percentage on the screen - Soft start time and response time can be adjusted. - Thyristor failure, fuse failure and overcurrent error against overheating and overheating error full It can be seen in function types. - CT current transmitter is available in full function models. (Available in Model A) - Rail mounting (Din-Rail)
