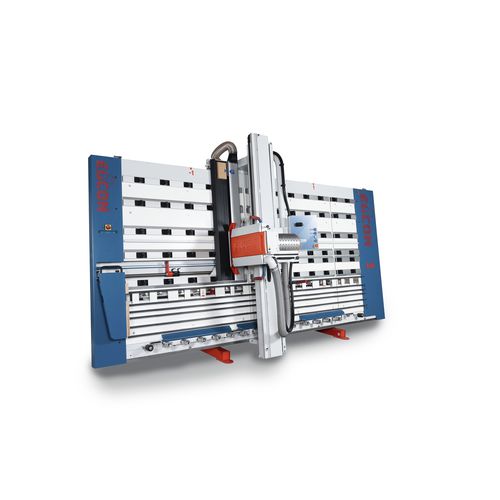

Panel saw DSXE-1/2L

verticalfor aluminumwood

The DSX models are designed for industrial use and have a large ouput capacity with e.g. increased cutting depth, pneumatic plunging and a motor rating upto 7.5 HP. A wide variety of accessories is available, such as many automatic functionalities and programming of cutting patterns. Characteristics •Clip board for job cards Handy holder of operator information or documents at the side of the control box. •Cutting depth 80 mm Maximum thickness of the material: 80 mm •Easy to use control panel Depending on the different options ordered the control panel will be delivered only with the relevant buttons. •Entry and exit rollers for panel handling Left- and right-side entry and exit rollers for easy panel handling. •Failure diagnosis Location of possible failures by easy accesible LED display •For many different materials •Heavy, self-rigid carrying guidance modules •No special floor needed •Pneumatic locking of saw-unit at working height, with fine adjustment •Pneumatic plunging of saw-unit •Precision within DIN 875/1 (0.1 mm.) •Programming rail for repetitive dimensions •Repeat-stop for strip cutting •Robust, fine-adjustable measuring stop •Standard equipped with 4 kW motor (s6)
