Air separator C series
wastecablefor the recycling industry

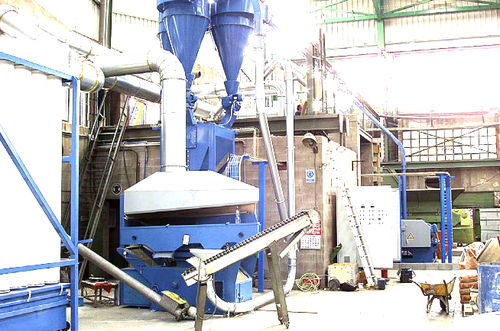

Air separator - C series - Eldan Recycling A/S - waste / cable / for the recycling industry

Air separator - C series - Eldan Recycling A/S - waste / cable / for the recycling industry - image - 2

Air separator - C series - Eldan Recycling A/S - waste / cable / for the recycling industry - image - 3

Air separator - C series - Eldan Recycling A/S - waste / cable / for the recycling industry - image - 4

Air separator - C series - Eldan Recycling A/S - waste / cable / for the recycling industry - image - 5

Add to favorites

Compare this product

Characteristics

Technology: air
Separated substance: waste, cable
Application domain: for the recycling industry
Other characteristics: automatic
Flow: 6,000 m³/h, 8,000 m³/h, 10,000 m³/h, 12,000 m³/h
(211,888 ft³/h, 282,517.334 ft³/h, 353,146.667 ft³/h, 423,776.001 ft³/h)
Length: 1,950 mm, 2,100 mm, 2,780 mm, 2,900 mm
(77 in, 83 in, 109 in, 114 in)
Width: 1,060 mm, 1,270 mm, 1,590 mm, 1,700 mm
(42 in, 50 in, 63 in, 67 in)
Weight: 650 kg, 725 kg, 925 kg, 1,100 kg
(1,433 lb, 1,598.35 lb, 2,039.28 lb, 2,425.08 lb)

Description

The Eldan Separation Table in an essential machine in the Eldan material separation solutions. The Separation table is used in recycling of: • Aluminium scrap • Tyres (upgrading quality by removing foreign objects) • Shredder light fraction (SLF/ASR) • Etc. Features • The separation table gives a high quality result – almost 100% clean main fraction • The material is divided into the following output fractions to ensure optimum purity: – Dust: removed via the dust suction system – Main fraction: taken from the top of the incline – Light fraction: taken from the bottom of the incline – Middling fraction: taken from the middle of the incline (and taken back for reprocessing) • Easily accessible adjustment controls enables adjustment during actual operation
