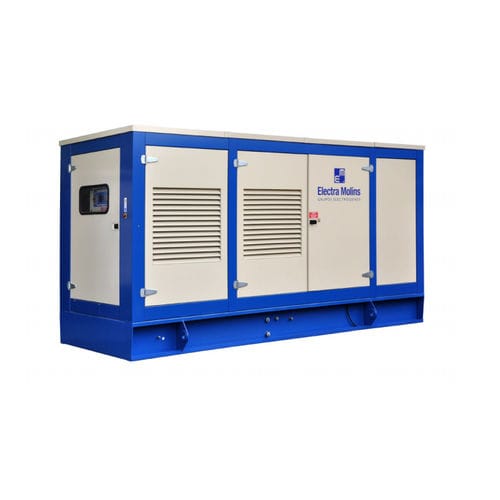

Diesel generator set EMV-730three-phasestationarydirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Fuel System
- direct fuel injection
- Cooling system
- air-cooled
- Power in kVA
Max.: 730 kVA
(992.52 hp)Min.: 660 kVA
(897.35 hp)- Rotational speed
1,500 rpm
(9,425 rad.min-1)- Noise level
Max.: 81 dB
Min.: 73 dB
Description
Brand of the Genset ELECTRA MOLINSControl panel type AUT-MP12Output in standby service on mains failure(LTP "Limited Time Power" according to norm ISO 8528-1)730 kVA 584 kWOutput in prime service(PRP "Prime Power" according to norm ISO 8528-1)660 kVA 528 kWTolerance of the maximum active power (kW) ±5%Current intensity in standby service on mains failure 1.054 ACurrent intensity in prime service 953 AVoltage 400 VNº of phases 3 + NPrecision of the voltage in steady state ±0,5%Range of voltage adjustment ±5%Power factor 0,8 - 1Speed 1.500 r.p.m.Frequency 50 HzFrequency variation in steady state ±0,5%Coolant heater output (only for automatic construction) 2.000 WAdmissible first step load 364 kWMean sound level at 10 m 73 dBAMean sound level at 1 m 81 dBAAcoustic power Lwa 101 dBA
