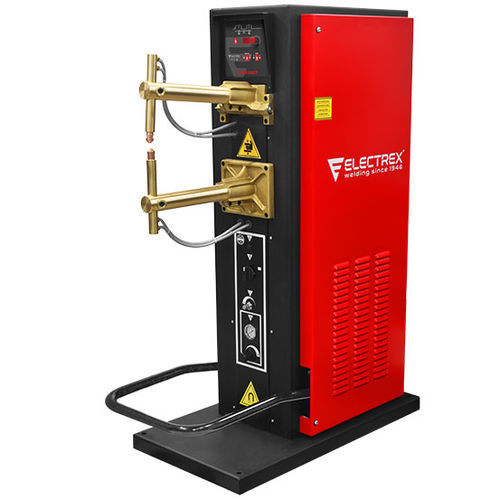

Spot welder THi 50 Digit

electrodesingle-phaseelectronic

• 50 kVA spot welding machine mechanically operated. • 400V or 230V (optional) single-phase power input of with automatic detection of mains frequency. • Arms and electrodes adjustable position and compatible with a wide range of electrodes, allowing different sizes and shapes parts welding. • Single or double current impulse (oxidized or galvanized sheets) Input voltage - Standard - 400(+/-10%) Input voltage - Optional - 230(+/-10%) Fuses - 50A Power - Máx/50% - 50kVA/25kVA Welding capacity - Steel - 5+5 mm - 20+20 Ømm Welding capacity - Stainless - 3+3 mm - 12+12 Ømm No-load voltage - 1-4V Short circuit current - 13,8KA Max. electrode pressure (daN - 7bar) 340/450mm - 200/140 Electrode opening - 30mm Distance between arms - Standard - 200mm Distance between arms - Optional - 320mm Arms length - Standard - 340-480mm Arms length - Optional - 200-1000mm Arms diameter - Ø 45mm Electrode holder diameter - Ø 25mm Electrode diameter - Ø 20mm Noise level - <70dB Air pressure - 4-8bar Water flow - 4lt/min Maximum cadence - 172/min Weight - 178Kg Dimensions - 1280x450x1050 mm
