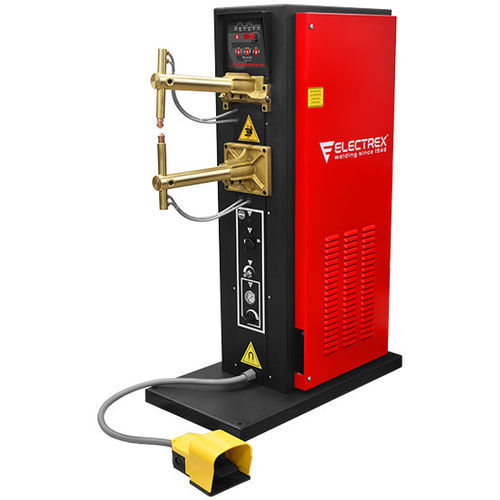

Spot welder THi 30 Digimatic PN

electrodesingle-phaseelectronic

• 30kVA spot welding machine pneumatically operated (PN). • 400V or 230V (optional) single-phase power input of with automatic detection of mains frequency. • Arms and electrodes adjustable position and compatible with a wide range of electrodes, allowing different sizes and shapes parts welding. • Single or double current impulse (oxidized or galvanized sheets) • DIGIMATIC controller that allows automatic sequential welding. Input voltage - Standard - 400(+/-10%) Input voltage - Optional - 230(+/-10%) Fuses - 40A Power - Máx/50% - 30kVA/14kVA Welding capacity - Steel - 4+4 mm - 15+15 Ømm Welding capacity - Stainless - 2,5+2,5 mm - 8+8 Ømm No-load voltage - 1-3,4V Short circuit current - 11KA Max. electrode pressure (daN - 7bar) 340/450mm - 200/140 Electrode opening - 30mm Distance between arms - Standard - 200mm Distance between arms - Optional - 320mm Arms length - Standard - 340-480mm Arms length - Optional - 200-1000mm Arms diameter - Ø 45mm Electrode holder diameter - Ø 25mm Electrode diameter - Ø 20mm Noise level - <70dB Air pressure - 4-8bar Water flow - 4lt/min Maximum cadence - 172/min Weight - 162Kg Dimensions - 1280x450x1050 mm
