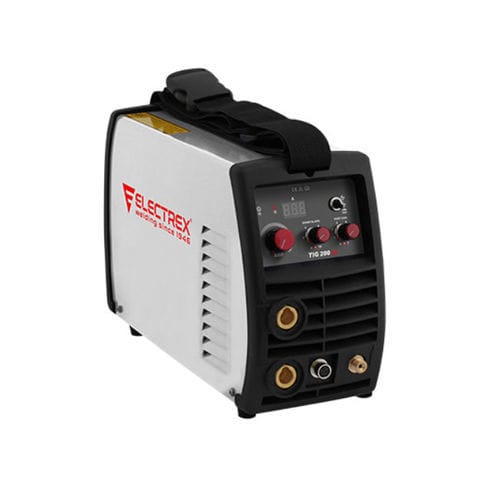

Inverter welder 200 HFMMATIGelectrode
Add to favorites
Compare this product
Characteristics
- Technique
- TIG, MMA
- Consumables
- electrode
- Power supply
- single-phase
- Output current
- DC
- Material
- for steel, for stainless steel, for brass, for copper
- Other characteristics
- inverter, portable, with integrated display
- Intensity
Max.: 200 A
Min.: 10 A
- Output frequency
50 Hz, 60 Hz
Description
Inverter for DC TIG welding with high-frequency arc ignition and MMA (stick electrode). Single-phase model equipped with active overvoltage protection for safe connection to generators. Ideal for construction, repair and maintenance professionals in steel, stainless steel, brass, copper and zinc.
Maximum primary current (MMA/TIG) - 46/33A
Maximum power (MMA/TIG) - 10,6/7,6 kVA
No-load voltage - 63V
Duty Cycle 35% - 200A
Duty Cycle 60% - 160A
Duty Cycle 100% - 120A
Electrodes - Ø 4.0 mm
Protection - IP 21S
Insulation class - H
Weight - 6,3 Kg
Dimensions (HxWxL) - 240 x 135 x 365 mm
