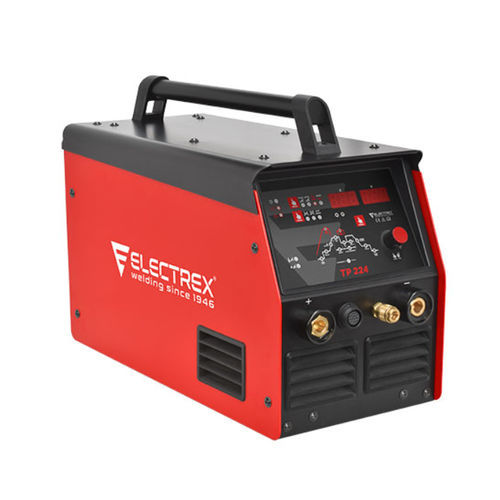

Inverter welder TP 224

MMATIGelectrode

• Inverters with single-phase power input for TIG and MMA welding in direct current (DC). • Dynamics function for constant thermal delivery and SPOT for timed welding. • A professional TIG machine with all welding parameters adjustable. Pre-gas, post-gas, initial and final current, up and down ramps, pulsed adjustment (balance and frequency). • Models with 20 memories to memorize welding programs. • TIG with contact ignition or high frequency and pulsed TIG function. • Suitable for all demanding TIG welders, professionals or beginners. • Excellent welding properties in basic and rutile electrodes with adjustable Hot Start and Arc Force function and pulsed MMA function. Maximum primary current (MMA/TIG) - 47,39/32,24A Maximum power (MMA/TIG) - 10,83/7,46 kVA Fuse - 35A No-load voltage (MMA/TIG) - 66/15,1V Duty Cycle 40% - 220A Duty Cycle 60% - 195A Duty Cycle 100% - 180A Electrodes - Ø 5.0 mm Protection - IP 23S Insulation class - H Weight - 14,6kg Dimensions without trolley (HxWxL) - 356 x 230 x 480 mm Dimensions with trolley (HxWxL) - 740 x 470 x 1030 mm
