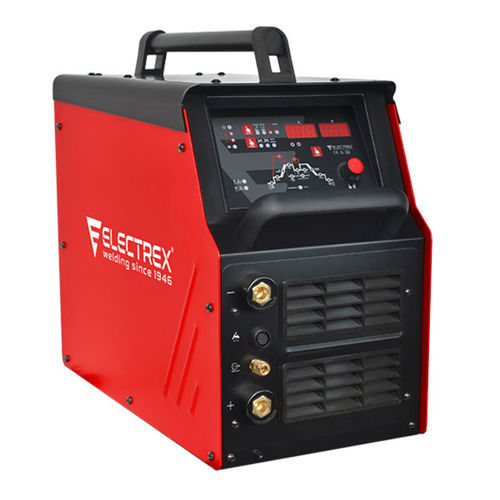

Inverter welder TP 504

MMATIGelectrode

• Inverter with three-phase power input for TIG and MMA welding in direct current (DC). • Dynamics function for constant thermal delivery and SPOT for timed welding. • A professional TIG machine with all welding parameters adjustable. Pre-gas, post-gas, initial and final current, up and down ramps, pulsed adjustment (balance and frequency). • Possibility of integration in trolley with or without cooling module. • Models with 20 memories to memorize welding programs. • TIG with contact ignition or high frequency and pulsed TIG function. • Suitable for all demanding TIG welders, professionals or beginners. • Excellent welding properties in basic and rutile electrodes with adjustable Hot Start and Arc Force function and pulsed MMA function. Input voltage - 3x400V (+/- 10%) Frequency - 50/60 Hz Maximum primary current (MMA/TIG) - 47,1/37,5A Maximum power (MMA/TIG) - 32,6/26,09 kVA Fuse - 32A No-load voltage (MMA/TIG) - 91,29/15,06V Duty Cycle 45% - 500A Duty Cycle 60% - 450A Duty Cycle 100% - 350A Electrodes - Ø 10.0 mm Protection - IP 23S Insulation class - H Weight - 45,6kg Weight w/ trolley - 67,8kg Weight with cooler - 84,2kg Dimensions without trolley (HxWxL) - 540 x 263 x 700 mm Dimensions with trolley (HxWxL) - 88 5x 470 x 1030 mm
