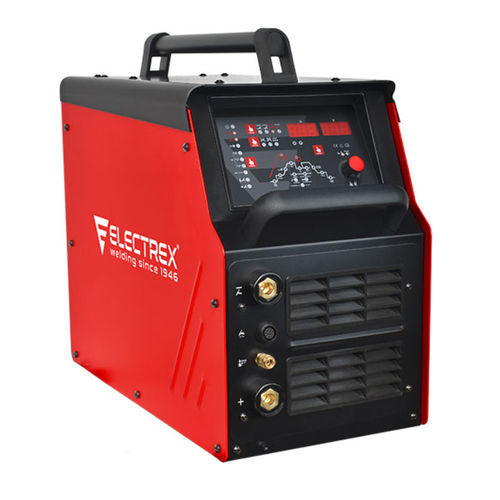

Inverter welder TP 324

MMATIGelectrode

• Inverter with three-phase power input for TIG and MMA welding in direct current (DC) or AC current (AC). • The complete machine for all materials, allowing excellent properties and welding results in AC mode – for welding aluminum and light alloys, or DC – for welding carbon steels, stainless steels and other ferrous metals. • Models with 9 memories to memorize welding programs. • Maximum mobility assured by carrying handle or integration into a trolley with cooling module or drawer. • Suitable for all demanding TIG welders, professionals or beginners who also needs to weld aluminum and light alloys. Maximum primary current (MMA/TIG) - AC - 20/19A Maximum primary current (MMA/TIG) - DC - 27/19A Maximum power (MMA/TIG) - AC - 17,3/13,2kVA Maximum power (MMA/TIG) - DC - 18,7/13,2AkVA Fuse - 25A No-load voltage - 72V Duty Cycle 60% - 320A Duty Cycle 100% - 250A Electrodes - Ø 8.0 mm Protection - IP 23S Insulation class - H Weight - 39,8kg Weight with trolley - 62kg Weight with cooler - 78,4kg Dimensions without trolley (HxWxL) - 540 x 263 x 700 Dimensions with trolley (HxWxL) - 885 x 470 x 1030
