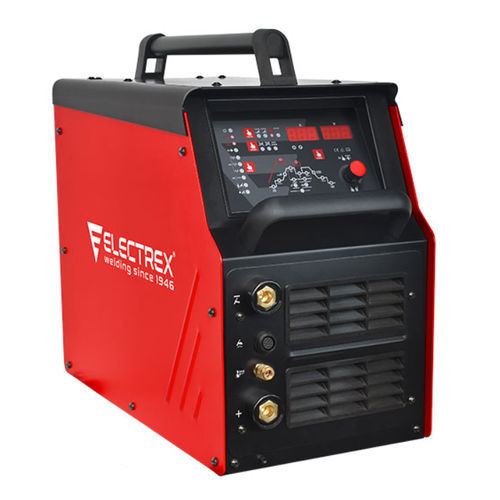

Inverter welder TP 404

MMATIGelectrode

• Inverter with three-phase power input for TIG and MMA welding in direct current (DC) or AC current (AC). • The complete machine for all materials, allowing excellent properties and welding results in AC mode – for welding aluminum and light alloys, or DC – for welding carbon steels, stainless steels and other ferrous metals. • Models with 9 memories to memorize welding programs. • Maximum mobility assured by carrying handle or integration into a trolley with cooling module or drawer. • Suitable for all demanding TIG welders, professionals or beginners who also needs to weld aluminum and light alloys Maximum primary current (MMA/TIG) - AC - 34/27A Maximum primary current (MMA/TIG) - DC - 33/24,5A Maximum power (MMA/TIG) - AC - 23,6/18,7kVA Maximum power (MMA/TIG) - DC - 22,9/17kVA Fuse - 32A No-load voltage - 72V Duty Cycle 60% - 400A Duty Cycle 100% - 310A Electrodes - Ø 8.0 mm Protection - IP 23S Insulation class - H Weight - 40,3kg Weight with trolley - 62,5kg Weight with cooler - 78,9kg Dimensions without trolley (HxWxL) - 540 x 263 x 700 mm Dimensions with trolley (HxWxL) - 880 x 557 x 966 mm
