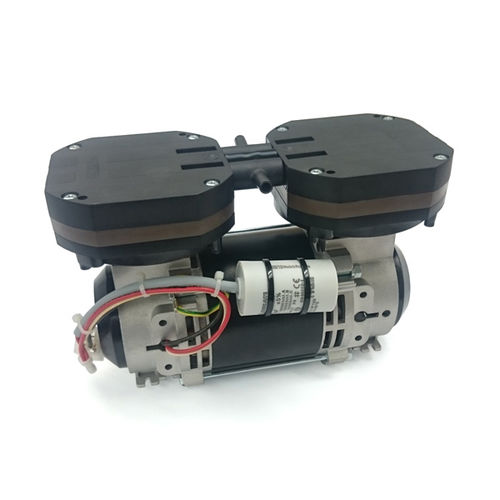

Diaphragm vacuum pump EVO30 lubricated230VAC120 VAC
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- lubricated
- Supply voltage
- 230VAC, 120 VAC
- Number of stages
- dual-stage
- Other characteristics
- high-performance, with electric actuator
- Ultimate vacuum
-960 mbar
(-13.92 psi)- Flow rate
38 l/min, 44 l/min
(10.04 us gal/min, 11.62 us gal/min)- Operating temperature
130 °C
(266 °F)- Length
235 mm
(9 in)- Width
119 mm
(4.69 in)- Height
154 mm
(6.06 in)- Weight
4.4 kg
(9.7 lb)
Description
Diaphragm vacuum pumps
EAD high performance vacuum
One Inlet Port and one Exhaust Port Ø 8 mm, this measure allows to use Push-In Fittings
The connexion change from parallel to series is automatically produced by means of the
vacuum level and internal extra valve
Catalogs
EVO30 AIR/GAS
1 Pages
