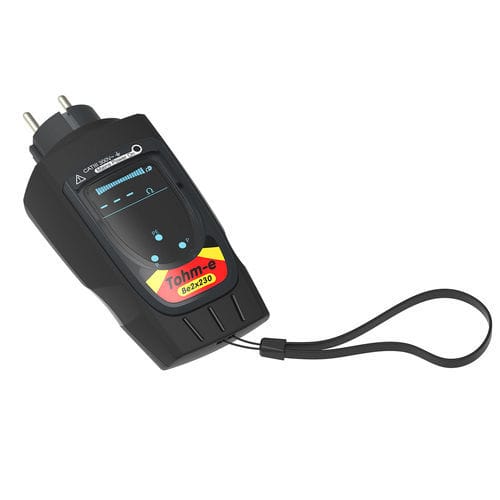

Earth resistance measuring device TE-BE2X230

digitalfor controlportable

2 x 230 V~ without neutral earth electrode resistance measuring device. Tohm-e TE-BE2x230 is an earth electrode resistance measuring device for the 230 V~ power sockets without any neutral. Just connect Tohm-e to a power socket then it displays the earth electrode resistance of the electrical installation and verifies it is lower than 30 ohms, within half a minute and without sticking any stakes. You have any doubts about the electrical grid of the power socket, 2 x 230 V~ without neutral or single-phase 230 V~, connect TE-BE2x230 and you get the answer within a couple of seconds and without using any multimeter. Do not worry about batteries, Tohm-e does not need any battery, it is powered by the power socket it is connected to, it is always ready. Rated voltage : 300 V~ CAT III • Applications: to verify earth electrode resistance of 2 x 230 V~ TT electrical installations without neutral, without sticking stakes. • Power supply : powered by the power socket. No battery. • Safety : 300 V~ CAT III, reinforced insulation. According to EN / IEC 61557-, 61557-3, and 61010-1. • Earth electrode verification : 30-ohm threshold, OK if the earth electrode resistance is lower than 30 ohms.
