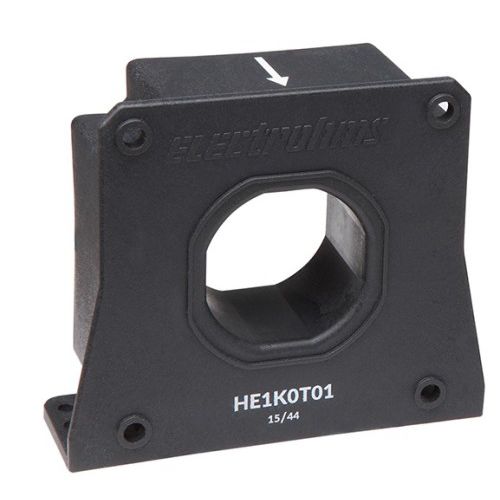

Closed-loop Hall effect current sensor HE1K0T01

panel-mountACDC

Hall Effect Current Sensor, Closed Loop These products are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, industrial drives AC drives & DC drives, Control in process application like light control, Heater load control etc KEY FEATURES •DC, AC and pulsated current measurements with Galvanic isolation. •1000A closed loop Hall effect current sensor with 40mm ID opening. •Dual supply operated ±15 to ±24V. •Fast response time,no insertion losses. •Excellent accuracy, low temperature drifts. RELATED APPLICATION •Industrial inverters/UPS •AC/DC drives •Central inverters •Converters for wind energy SPECIFICATION Product NoHE1K0T01 Ipn (A)1000 IpMax (A)±1500 Sup. Voltage(V) ±15 ... ± 24 Iout/Vout @Ipn 200 mA Bandwidth-3dB(kHz)DC - 100 Accuracy % ±0.4 Secondary TerminationConnector Header Mounting TypePanel
