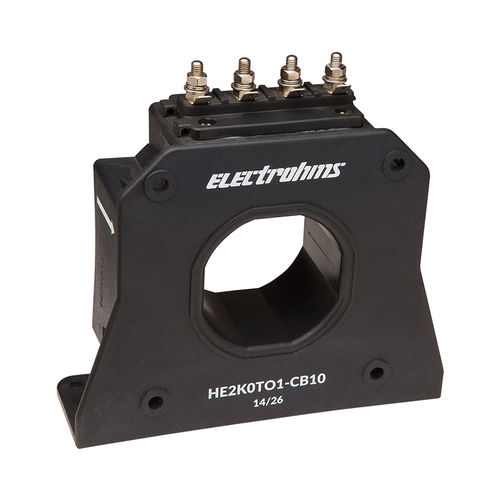

Closed-loop Hall effect current sensor HE2K0T01-CB10

panel-mountACDC

Hall Effect Current Sensor, Closed Loop These products are used in measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, industrial drives AC drives & DC drives, Control in process application like light control, Heater load control etc KEY FEATURES •DC, AC and pulsated current measurements with Galvanic isolation. •1600A closed loop Hall effect current sensor with 60mm ID opening. •Dual supply operated ±15 to ± 24V. •Fast response time,No insertion losses. •Excellent accuracy ,low temperature drifts. •Excellent linearity. RELATED APPLICATION •DC Traction motor current monitoring in locomotives •Industrial inverters/UPS •AC/DC drives •Central inverters •Converters for wind energy SPECIFICATION Product NoHE2K0T01-CB10 Ipn (A)1600 IpMax (A)±3000 Sup. Voltage(V) ±15 ... ± 24 Iout/Vout @Ipn 320 mA Bandwidth-3dB(kHz)DC - 100 Accuracy % ±0.3 Secondary TerminationM5 stud with faston Tab Mounting TypePanel
